Combined Strengths All-in-One

TLCI 99, CRI 95±2

Vibrant Color Reproduction

With a TLCI of up to 99 (97±2) and a CRI of up to 97 (95±2), the SE fixtures raise the color reproduction to new heights, representing colors truthfully, neutral and vibrant.

Increased Brightness

An advanced design results in even more brightness than previous generations could achieve. Yet also the new Special Editions maintain a wide beam angle to not sacrifice softness for brightness.

New Attachment System

Incorporating the new F&V attachment system for light shaping accessories, the SE fixtures are compatible with the full range of tools like barndoors, honeycomb grids, diffusers, filterholders and softboxes.



DIMENSIONS

Model

K12000 SE

K12000S SE

Item No.

18020502 (EU)

18020503 (US)

18020402 (EU)

18020403 (US)

EAN Code

6949773304325 (EU)

6949773304332 (US)

6949773304387 (EU)

6949773304394 (US)

Net Weight

3.7 kg (8.1 lbs)

3.7 kg (8.1 lbs)

Packed Weight

5 kg (11 lbs)

5 kg (11 lbs)

Packed Size

650×130×415 mm

650×130×415 mm

Note Protection Mark according to DIN 34

SPECIFICATION

LED SOURCE

Beam Angle

50°

White Light

K12000 SE

K12000S SE

Daylight 5,600 K

Bi-Color 3,200 K - 5,600 K Continuously Variable Correlated Color Temperature

Color Temperature Tolerance

± 200 K (nominal)

Color Rendition

TLCI 95-99 (97±2), CRI 93-97 (95±2)

Dimming

0 -100% Continuous

Control

On-Board Controller

Estimated LED Lifetime

50,000 hours (15 Years of average use)

POWER SUPPLY

Power Voltage Range

10 - 18 V DC

Input Current Range

Max. 8.01A @ 10V / 4.45A @ 18V

Power Consumption

75.5 W Nominal, 80.1 W Maximum

Battery Option

V-mount Battery Plate ×1 - Built in / 3-stud Mount Plate - Optional

Power Connection

Neutrik speak ON NL2MP (Plug: Neutrik speak ON NL2FX)

GENERAL

Thermal Design

Silent Passive Cooling

Mounting

16 mm / 28 mm Combo Pin (Baby 5/8 inch / Junior 1-1/8 inch Combo Pin)

Housing Color

Black

Ambient Temperature Operation

-20 to +45º C (-4 to +113º F)

Protection Class

IP 20

Certifications

CE (EMC, LVD, RoHS, REACH), ISO9001:2000

All specifications are nominal / typical values.

PHOTOMETRIC DATA (preliminary results)

K12000 SE

with KS-1 Intensifier

K12000 SE

45° beam angle

50° beam angle

K12000S SE

with KS-1 Intensifier

K12000S SE

50° beam angle

45° beam angle





KITS

K12000 SE Daylight

LED Light

K12000 SE Bi-Color

LED Light

ACCESSORIES

Shaping

KS-2 Softbox
KS-2 Softbox

for 1x2 Panels

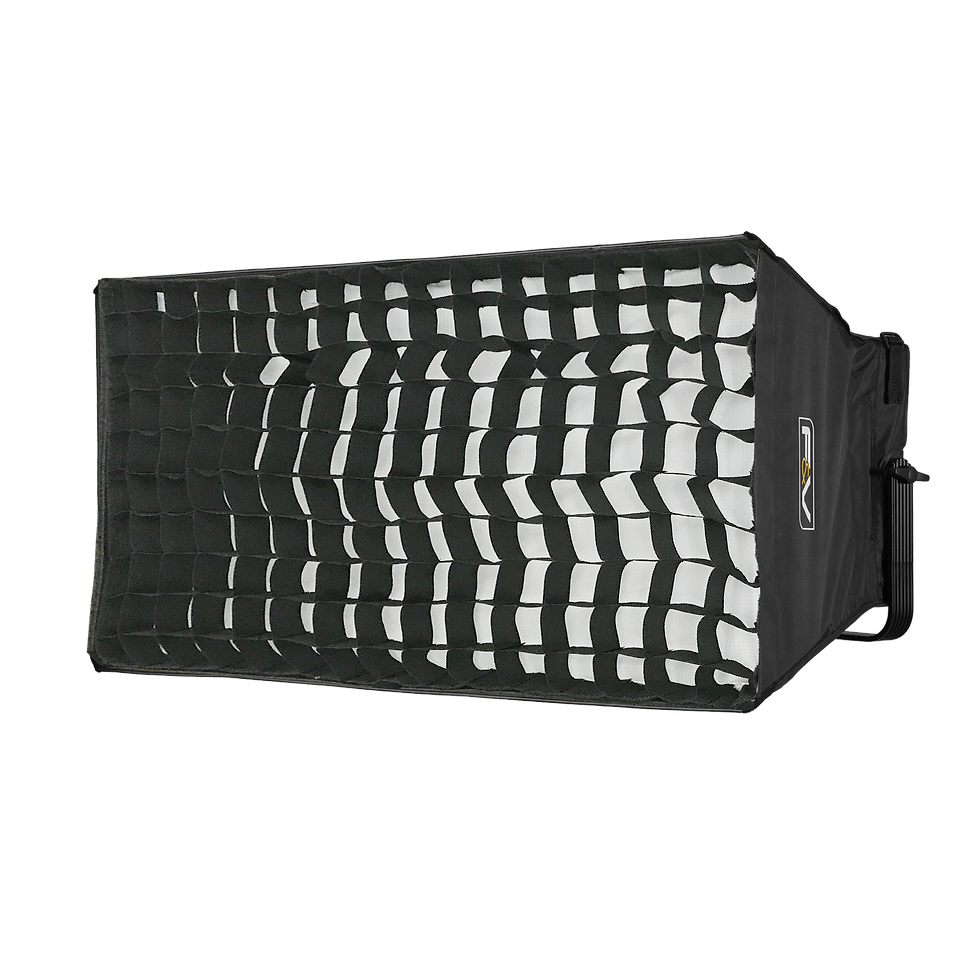

KS-2 with Grid
KS-2 with Grid

for 1x2 Panels

FAF-2 Frame
FAF-2 Frame

for 1x2 Panels

HG30-2 Honeycomb
HG30-2 Honeycomb

for 1x2 Panels

HG45- Honeycomb
HG45- Honeycomb

for 1x2 Panels

BK4-2 Barndoor Kit 4 Leaf
BK4-2 Barndoor Kit 4 Leaf

for 1x2 Panels

BSS2 Barndoor Set Sides
BSS2 Barndoor Set Sides

for 1x2 Panels

Control

DMX Module
DMX Module
Wifi Module
Wifi Module
Dedicated Controller
Dedicated Controller

for Wifi Module

Wired Dimmer
Wired Dimmer

Power

Case

Battery Plate
Battery Plate

3-stud Mount

Pro Wheel Case
Pro Wheel Case

for 2 * 2x1 Panels
